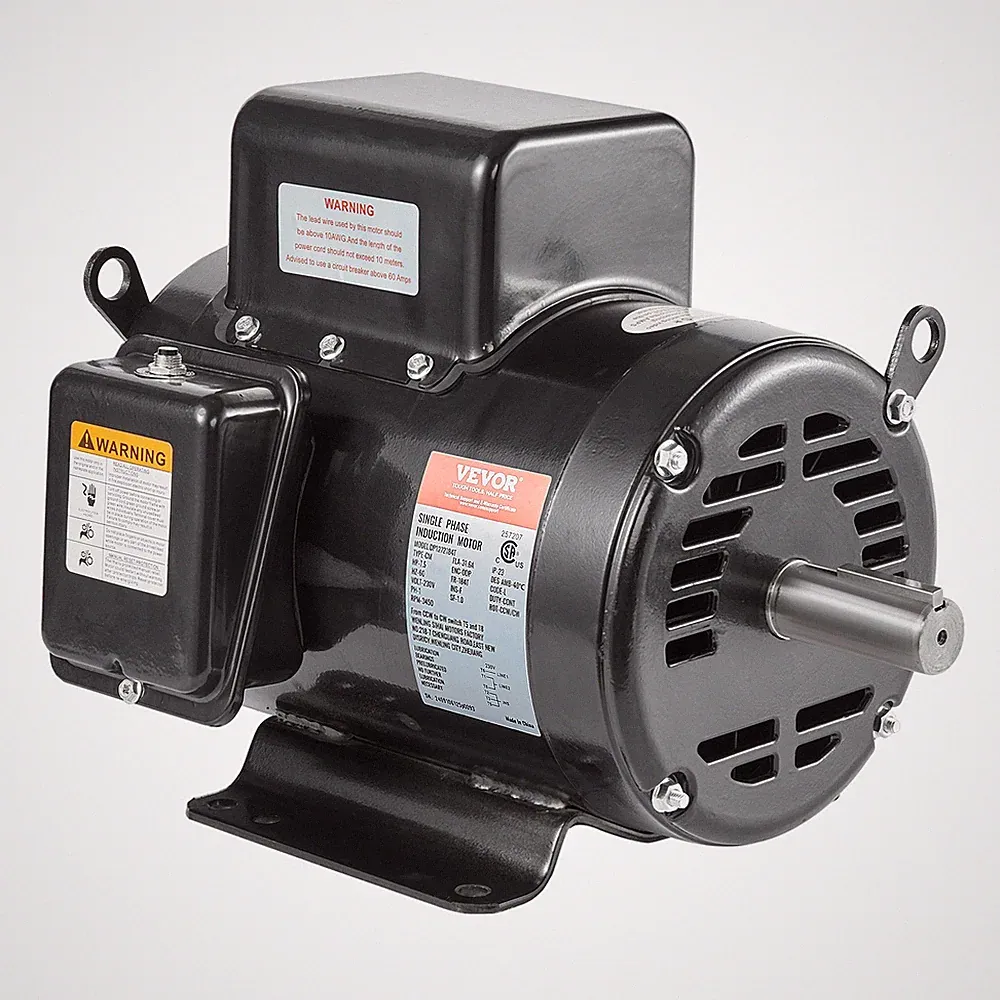

VEVOR 7.5HP Air Compressor Electric Motor 230V 3450RPM 184T Frame CW/CCW Rotate
This page is affiliate-supported. Prices and availability can change after the last marketplace refresh.
About this product
The VEVOR 7.5HP Air Compressor Electric Motor is a single-phase unit operating at 230V with a frequency of 60Hz. It delivers a rotation speed of 3450 RPM and draws a current of 31.6A. This motor features an Open Drip Proof (ODP) enclosure, a 184T frame, and a 1-1/8" keyed shaft with a 2.75" length. With a net weight of 67.7 lbs, it's designed for applications requiring consistent power.
Our take
For those needing a solid 7.5HP motor for their air compressor, this VEVOR model presents a practical option. The 230V single-phase setup with 3450 RPM is fairly standard, making it suitable for many replacement scenarios. The 184T frame and 1-1/8" keyed shaft are common dimensions, which helps with compatibility. Just remember that the ODP enclosure means it's not sealed against fine dust or splashes, so consider your environment. The 31.6A current draw also implies a dedicated circuit is a must. It's a sturdy unit at 67.7 lbs.
Pros & Cons
Pros
- 7.5HP power output
- 230V single-phase operation
- 3450 RPM rotation speed
- Standard 184T frame and keyed shaft
Cons
- Open Drip Proof (ODP) enclosure
- 31.6A current draw requires proper wiring
Specifications
- Brand VEVOR
- Item Model Number DP1272184T
- Voltage 230V
- Frequency 60HZ
- Current 31.6A
- Rotation Speed 3450rpm
Show all 14 specifications
- SF
- 1.0
- Enclosure
- ODP
- Frame Size
- 184T
- Shaft Diameter
- 1-1/8" Keyed Shaft
- Shaft Length
- 2.75"
- Keyway Size
- 0.25"
- Net Weight
- 67.7 lbs / 30.7 Kg
- UPC
- 197988770626
