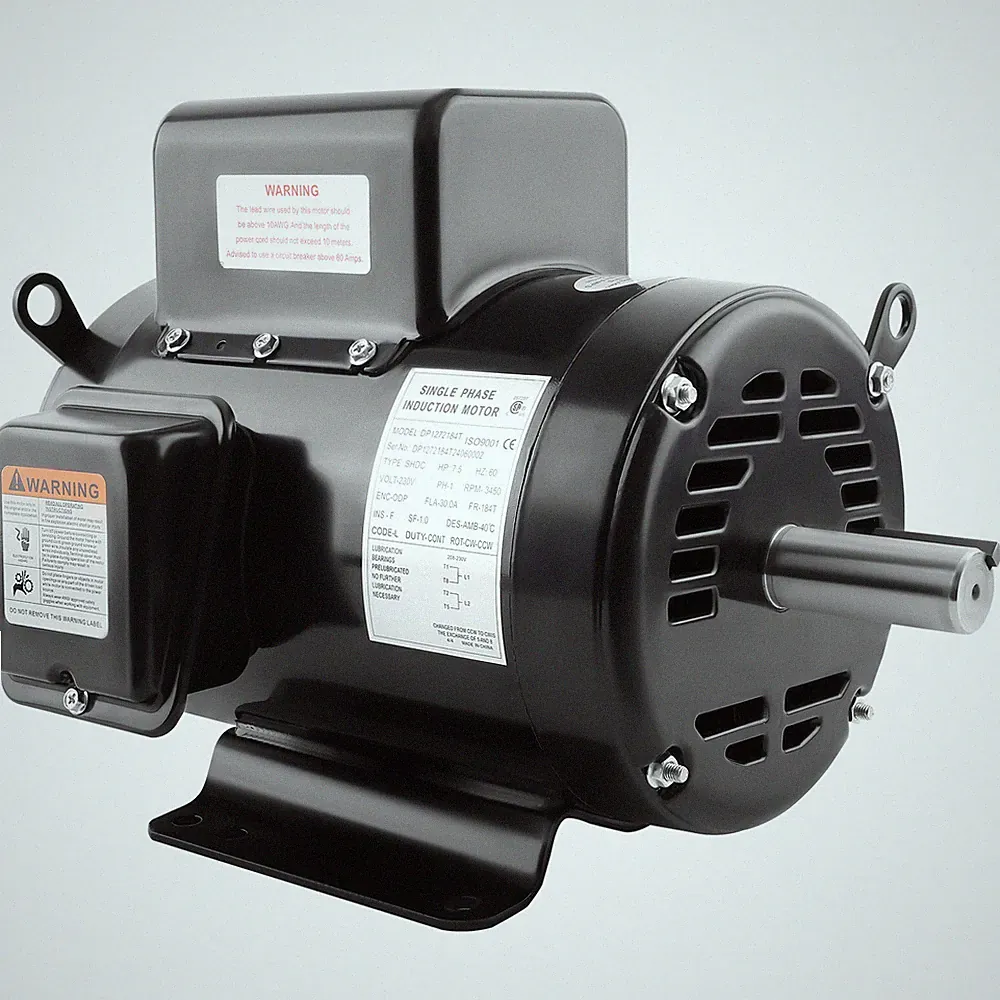

Air Compressor Motor 7.5HP 3450 RPM 1-1/8" Shaft 184T Frame ODP 230V 30A CW/ CCW
This page is affiliate-supported. Prices and availability can change after the last marketplace refresh.
About this product
This BFO Air Compressor Motor is a powerful 7.5HP single-phase unit, operating at 3450 RPM. It features an Open Drip Proof (ODP) enclosure and a robust 1-1/8" keyed shaft with a length of 2.75". The motor is designed for 230V operation with a full load current of 30A, supporting CW/CCW reversible rotation. With an 184T frame, it is base-mounted and comes with a 1-year manufacturer warranty, suitable as a direct replacement part for continuous compressor duty.
Our take
If you need serious power for your air compressor, this 7.5HP single-phase motor from BFO is certainly a contender. The 3450 RPM base speed means it's geared for rapid air production. The 1-1/8" shaft diameter is substantial, indicating it can handle the torque from larger pumps. I like that it's reversible, adding flexibility for different compressor configurations. However, the 30A full load current at 230V means you'll need a dedicated circuit capable of handling that demand, which might require electrical upgrades for some workshops. The ODP enclosure is fine for dry conditions, but it's not sealed against moisture or dust, so placement is key. The 1-year warranty offers decent coverage for a direct replacement part.
Pros & Cons
Pros
- Very powerful 7.5 HP rating
- High 3450 RPM speed
- 1-1/8" keyed shaft
- CW/CCW reversible rotation
- Continuous compressor duty rated
Cons
- High 30A full load current
- Open Drip Proof (ODP) enclosure
- Single-phase operation
Specifications
- AC Phase Single Phase
- Base RPM 3450 RPM
- Brand BFO
- Current Type AC
- Duty Cont. Compressor
- Enclosure Type Open Drip Proof (ODP)
Show all 30 specifications
- Fitment Type
- Direct Replacement
- Full Load Amps
- 30A
- IEC Frame Size
- 184T Frame
- Insulation Class
- F
- Inverter/Vector Duty Rating
- No
- Manufacturer Part Number
- WPL803
- Manufacturer Warranty
- 1 Year
- Model
- 7.5 HP Air Compressor Motor
- Mounting Type
- Base-Mounted
- NEMA Frame Suffix
- 184T
- Nominal Rated Input Voltage
- 208 V, 230 V
- Note
- No Instruction Included
- Notice
- This is aftermarket replcement part., California Prop 65 Warning.
- Quantity
- 1 x Compressor Electric Motor
- Rated Load (HP)
- 7.5
- Reversible/Non-Reversible
- Reversible
- Rotation
- CW/ CCW
- Shaft Diameter
- 1-1/8"
- Shaft Length
- 2.75"
- Shaft Type
- Keyed
- Surface Finish
- Brand New
- Unit Quantity
- 1
- Voltage
- 230 Volts
- Country of Origin
- China
